Tech Specs

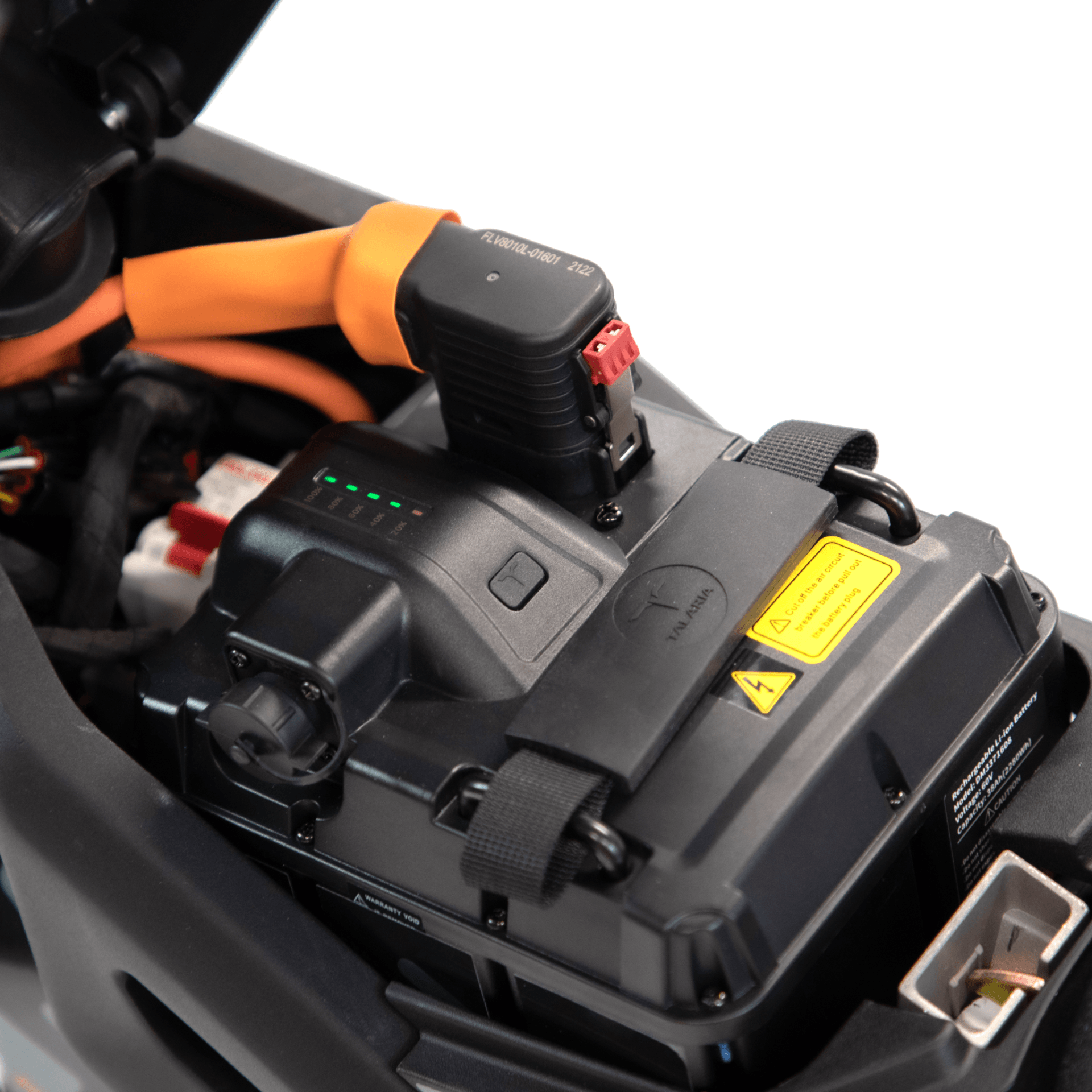

BATTERY

STING is powered by an impressive 60V 38Ah lithium-ion power pack, which is 2280 watt-hours, and easily swappable. The power packs can be exchanged with another fully charged power pack in seconds for limitless range. With electric automobile grade LG 21700 lithium-ion battery cells, state of the art programmed BMS, and optimized internal structure, this battery pack is enabled to ensure the bike brings you safe, hi performance off-road riding.

CONTROLLER

With the high-quality appropriative hardware, superb layout, and ingenious programming, the controller is enabled to have an extraordinary ability for transient current impact resistance, ultra strong anti – interference, high-precision EABS voltage and discharge current control, error inspection, high and low temperature protection, anti-runaway, and smart energy regeneration. This guarantees to bring the rider a powerful, exciting, and safe riding experience with a respectable range.

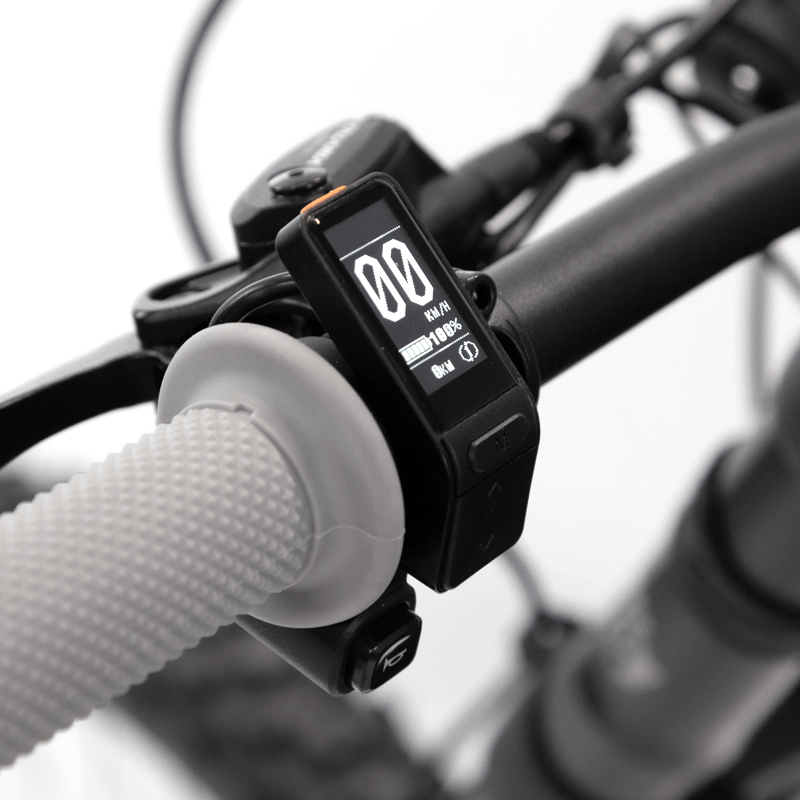

SPEEDOMETER

The dash features a high-contrast OLED display, this will offer riders a clear data display with low power consumption. With CAN communication, the dash is available to have data transfer with the battery pack’s BMS and the motor controller. The display menu provides a range of information, which include top/average speed, range, battery data, riding mode, error codes, regen level and more. The dash is also adjustable to allow different settings for different wheel size, sprocket size, motor regen levels, and change between KM/H and MPH to enhance the compatibility of the bike.

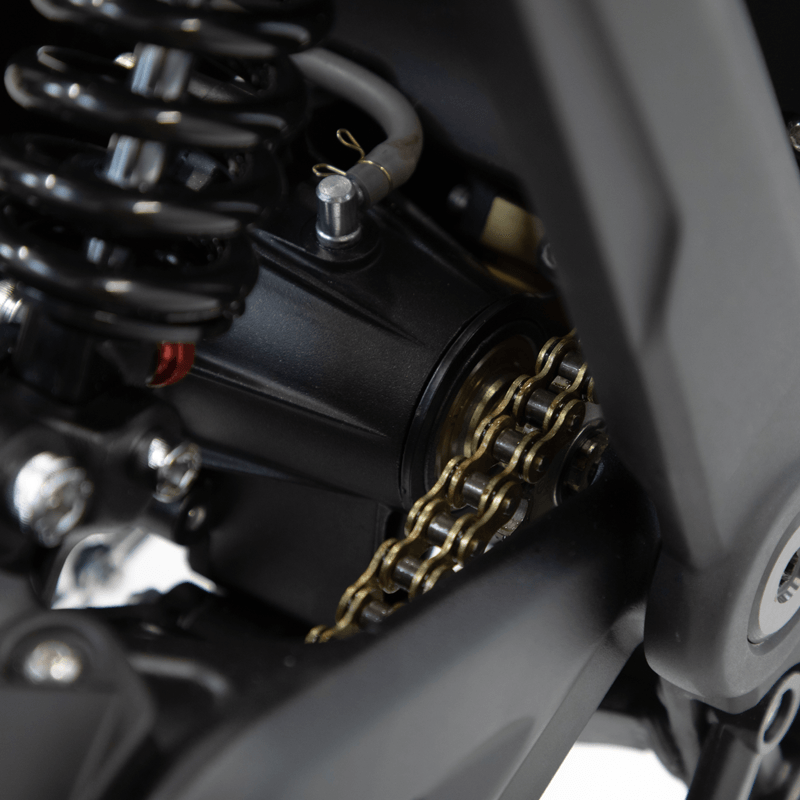

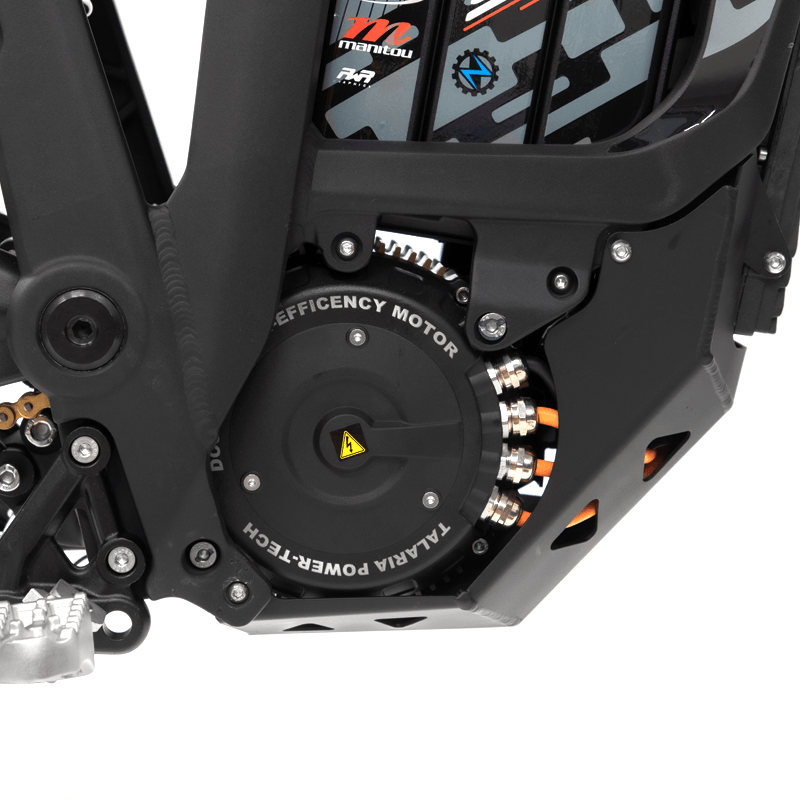

POWERTRAIN

The customized combination powertrain design is just perfect for the light weight electric MX bike. The high efficiency brushless permanent magnet synchronous mid-drive motor, with top-class magnet material and advanced processing, is available to output 34N.m peak torque, as well as to have 284N.m peak torque to the rear wheel. With exquisitely crafted high accuracy gears, the gearbox runs even quieter and is much more durable than any belt drive systems. It’s time to say goodbye to that broken belt anxiety.
